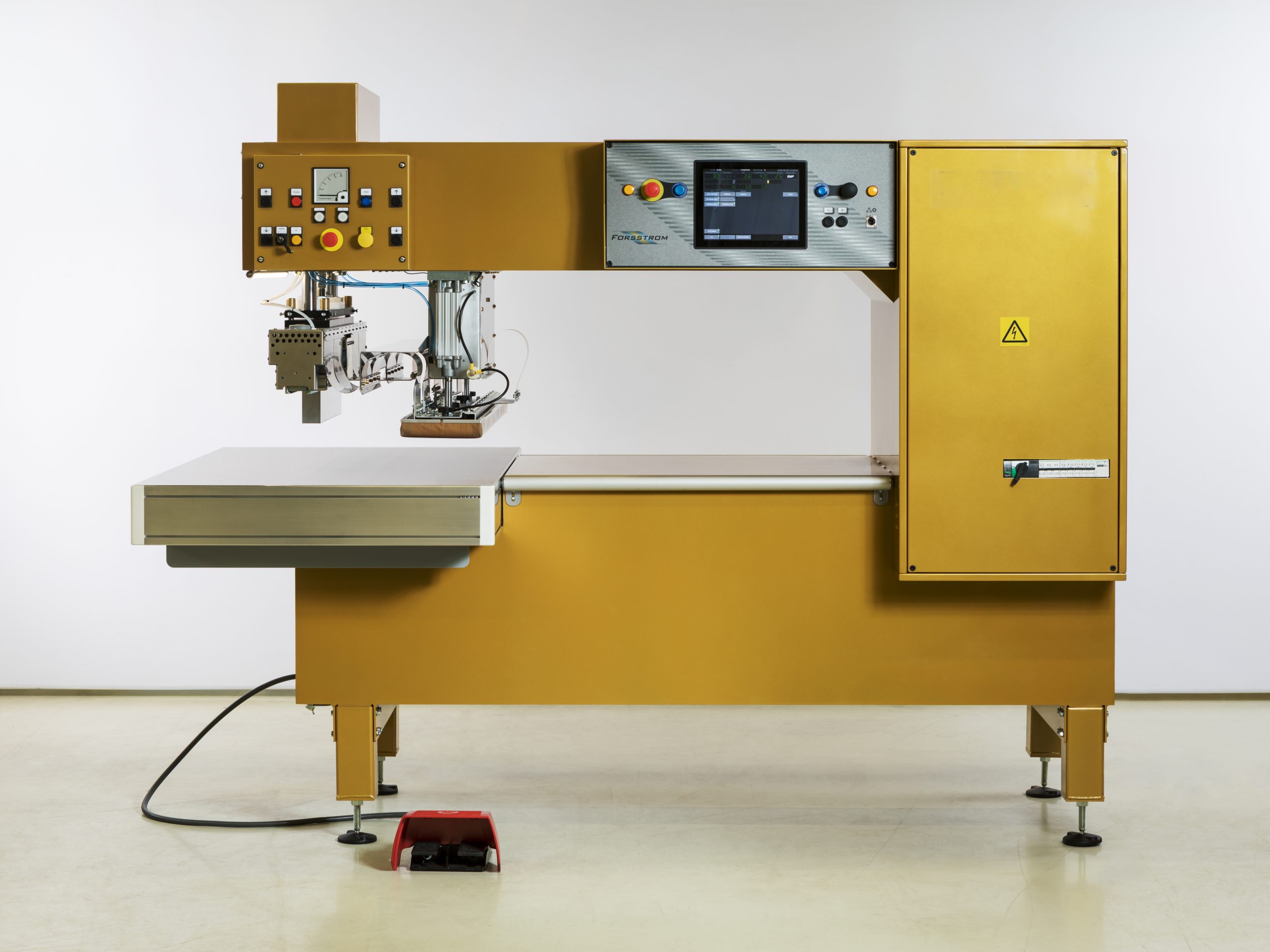

This is a picture of Forsstrom's machine model DR.

Forsstrom

DR
Large Stationary HF Welding Machine

  • 5-12 kW emitted HF.
  • 200-500 cm² weldable surface.
  • 1500 mm free space behind the electrode
  • 200 mm max electrode width
  • 160 mm daylight (with a 45 mm high electrode)

Discover Forsstrom DR

The DR (5-12 kW) has been part of our machine range for over 25 years. It enables optimized material handling with the possibility to work from three sides of the machine. This model has a mechanical adjustable stop of the sink depth, which enables a safe weld of non-reinforced material for the production of for example pool liners.

Developed for welding large products

Forsstrom’s HF welding machine model DR is suitable for welding of large products since it has a large free space of 1500 mm behind the electrode.

The DR model has been further developed to accommodate our customer needs and the following additional features have been added:

  • Possibility of increased distance between welding electrode and earth electrode, up to 250 mm
  • Larger welding table and adaptable machine height
  • In-feed ramp for improved material handling

Features and benefits:

  • The DR model offers a large free space of 1500 mm behind the electrode.

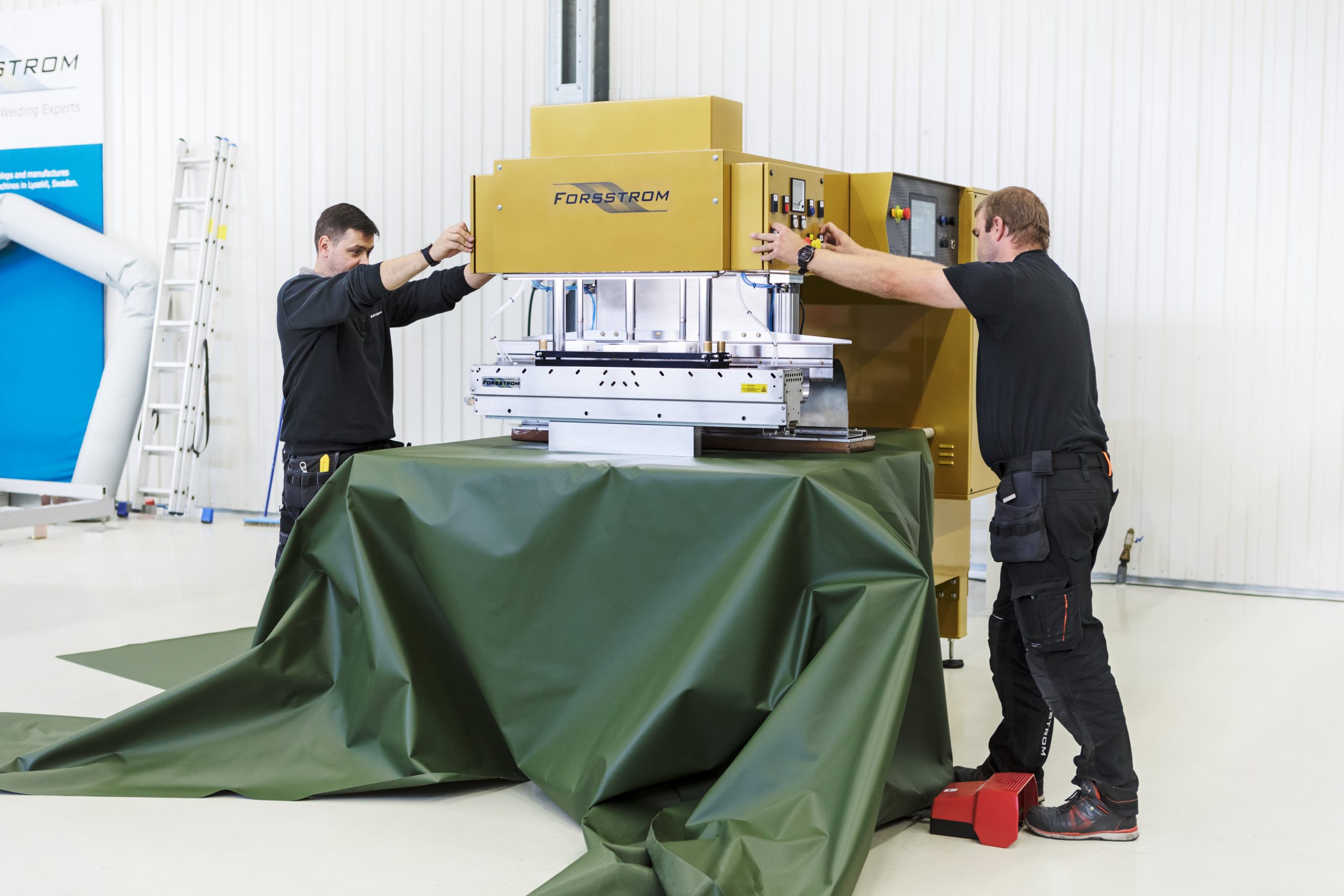

  • Enables optimized material handling with the ability to work from three sides of the machine.
  • Features a mechanical adjustable stop of the sink depth, ensuring a safe weld of non-reinforced material such as pool liners.
  • Increased distance between welding electrode and earth electrode, up to 250 mm.
  • Larger welding table and adaptable machine height for enhanced versatility in various welding applications.
  • In-feed ramp for improved material handling, facilitating smoother workflow and reducing production downtime.

Technical Specs
